STANDARD FEATURES
(Without Arms)
* Synchro Lock mechanism with back tension
* Back height adjustment
* Gas height adjustment
* 700mm Black Nylon Base
* Seat Base Polypropylene - Laminated high density foam
* Back - Nylon Netted Back - Various adjustments
* Various adjustment Head rest
* COM: 1m Fabric (Seat 1m)
* COM: Genuine Leather Hide ( 1.7 m² )
Additional Information
Chair Style: High Back, Mid Back, Visitors
Arm Variants: No Arms, Y55, Y75, Y100, Y200, Y400, Y420, Y500, Y600, Y800

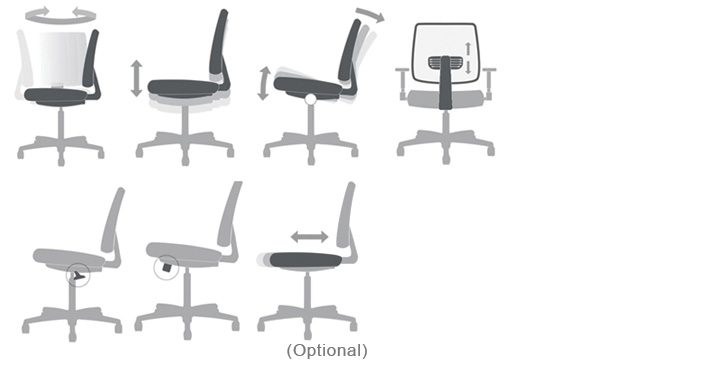

Movements
Dimensions
| Style |
ZNC6 |
ZNC5 |
ZNC2 |
| Overall Height |
1220mm |
1030mm |
1020mm |
| Overall Width |
700mm |
700mm |
670mm |
| Overall Depth |
680mm |
600mm |
650mm |
| Total Weight |
19kg |
18kg |
17kg |
| Seat Lowest |
520mm |
570mm |
520mm |
| Seat Highest |
610mm |
610mm |
520mm |
Specifications
ZNC6 – High Back

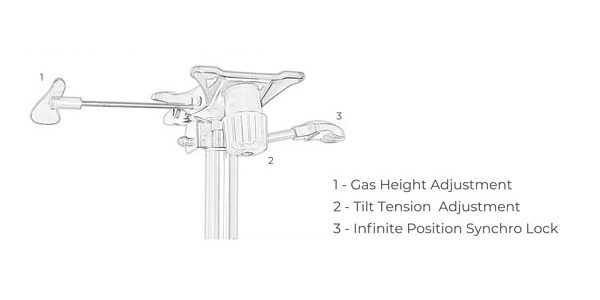

Mechanism
Synchro lock with back tension adjustment
Right hand lever – Height adjustment lever
Left hand lever – Pull lever upwards for constant back contact – free floating
Push lever downwards to lock back in any position
Gas Spindle
Executive single taper – Class 4

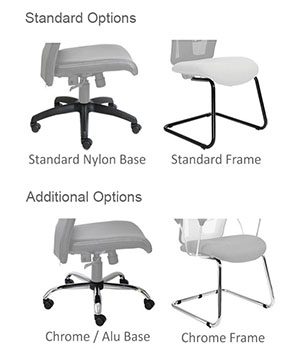

Base
700mm Nylon base with 50mm hooded castors
Option of Chrome or Aluminium base
Seat
Injection moulded polypropylene
Laminated VP70 high density and VC64 chip foam
Back
Nylon frame with netted insert
Adjustable lumbar support – nylon
Nonadjustable head rest
ZNC5 – Mid back
Comes without the head rest
Same features as the High back
ZNC2 – Visitors chair
Same seat & back rest
25mm Round tubing sleigh base frame – Cold rolled steel with 2.5mm wall thickness
Fabric Ranges
Range 1 – Range 11
View Available Fabrics
Mechanism
Base Options
